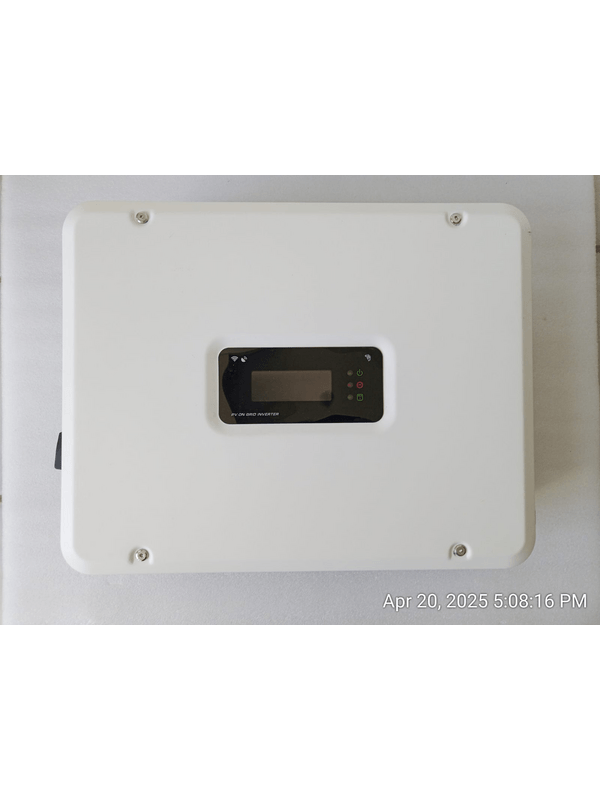

Nominal 10KW grid tie inverter, can take solar input to 15KW, up to 550Vdc, up to 45.6 amperes. Output to 240Vac, 60Hz, 10KW, up to 28/18 amps, MPPT function to maximize solar energy capture. Wifi PV Pro app enables live power and historical power generation views. IP65, with double casing, inner casing is sealed to preserve dust and moisture protection. Many protection features, see below. High solar DC input voltage enables low current transmission to achieve same high wattage, hence thinner gauge wires can be used. Besides lowering cost, this also lowered fire risks. Similarly, high AC output at 240Vac instead of 120Vac, have similar advantages mentioned for DC.

Works with USA, Europe, and Asian grid voltages/frequency.

Solar Optimization: This inverter has MPPT function to optimize/maximize solar panels generated energy. In contrast some competitive inverters, eg, SolarEdge, requires EACH PANEL to have an optimizer. This raise system cost by about $50/panel, depending on the model. In other words, this inverter centralized the MPPT function into itself in contrast to other competitors' inverters which require the MPPT function be delegated to each solar panel's optimizer. Moreover, some of these competitors gridtie' inverters will not work (e.g. SolarEdge) without an optimizer attached to each panel.

Advantages over competitors:

Competitors would required two of their units to achieve 240Vac, raising system cost and points of failure.
MPPT is centralized in this inverter. This 10KW inverter has dual MPPT.You do not need an optimizer for each solar panel, e.g, SolarEdge inverters won't work without optimizer at each panel, which raises cost. Having an optimizer at each panel will prevent subsequent use of off-grid inverters with that panel array.
Future proof your lower wattage inverter, eg, 6000W to be upgraded to 10KW. This inverter will future proof your lower-wattage system, lowering total system cost over time.
Wifi monitoring of current and historical power generated. Not all competitors' inverter has this feaure.
Better heat dissipation and waterproofing, achieiving IP65 level.

User Reviews

How to connect inverter, see picture

Monitor power generation using PV Pro app App for cellphone that provide current and historical energy output views, etc.

Model	10KW
Input Data (DC, PV)
Number of Input MC4 Sockets	2 sets (positive and negative)
MPPT Voltage Range	100-450Vdc
Operation Voltage Range	75V-550Vdc
Maximum Input Voltage	550Vdc, higher voltage allows the use of thinner wires to carry the same wattage
Startup Voltage	75Vdc
Shutdown Voltage	100Vdc
Night power consumptionr	< 0.2W
Maximum Input Power	15KW
Maximum input Current	28/18A (2 different [amperage] sets of MC4 input)
Output Data(AC)
Single-Phase Grid Type	240Vac
Rated Output Power	10KW
Maximum Output Power	10.5KW
Nominal Output Current	45.6A
Nominal Output Voltage	240Vac
Default Output Voltage Range	@240VAC:180V-270V. Good for USA, Europe, & Asia
Nominal Output Frequency	50Hz / 60Hz, auto select
Default Output Frequency Range	@50Hz:48Hz-51Hz/@60Hz:58Hz-61Hz
Power Factor	>0.99%
THDTotal Harmonic Distortion	THD<1.5%
Maximum Units per Branch	@230VAC:2units
Efficiency
Peak Efficiency	97.5%
Nominal MPPT Efficiency	99.9%
Night Power Consumption	<1W
Mechanical Data
Operating Ambient Temperature Range	-25℃ to +60℃
Storage Temperature Range	-40°C to +85C
Dimensions(WH D)	434/340/115 mm or 17/13.4/4.5"
Weight	11 kg
Max Current of AC Bus Cable	45.6A
Waterproof Grade	IP65, suitable for outdoors (moisture/dust proof)
Cooling Mode	Natural Convection- No dust ingrress to sealed chamber.
Other Features
Communication	WIFI(Cloud monitoring). Views of current and historical power generated.
Transformer Design	High Frequency Transformers,Galvanically Isolated
Integrated Ground	Equipment ground is provided by the PE in the AC cable. No additional ground is required.
Protection Functions	DC reverse-polarity, anti-islanding, overvoltage, short circuit, leakage current, grid monitoring, DC/AC SPD (thermal protection)

Package Includes:

Inverter
Installation back board
Positive and Negative DC Connector
AC Connector
Hardware, installation screws
User Manual
Wifi Setup guide
Warranty Card & Package List
Certification

For solar array with lower voltage input and wattages, please take a look at our 60Vdc-1000W, 60Vc-2800W, 500Vc-3000W, and 500Vc-6000W. You are welcome to visit us at Solartorrents for online User Manuals, Forums, & more.

Do not connect energized solar panels to any inverter because the sudden surge of current into inverter will damage your panels and inverter. Either do such connections before sunrise or after sunset. Alternatively, use our SparkFree device kill switch will enable anytime connections, sparks free, and safe for solar panels and inverter in daylight connections.
