SOLAR TORRENTS

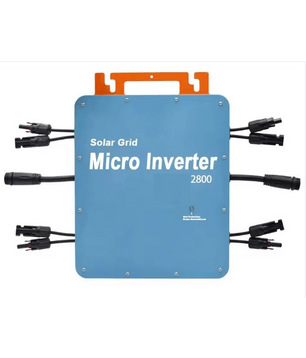

This grid-tie / string inverter supports both 120 of household grid, single phase. For 120 Vac to grid, just connect the supplied power cable into inverter at one end and the other end to any USA household socket.

Advantages over competitors:

MPPT is centralized in this inverter. You do not need an optimizer for each solar panel, e.g, SolarEdge inverters won't work without optimizer at each panel. This inverter's MPPT centralizes and optimizes power generated by panels.
Future proof your lower wattage inverter, eg, 1000W to be upgraded to 3000W. This inverter will future proof your lower-wattage system, lowering total system cost over time.
Wifi monitoring of current and historical power generated. Not all competitors' inverter has this feaure.
Better heat dissipation and waterproofing, achieiving IP66 level.

How to connect inverter's AC 3 output pins (Live/L, Neutral/N, Ground/G) to grid's L1, L2, Neutral/N, and Ground/G:
For 120 Vac: L-L1, N-N, G-G; or L-L2, N-N, G-G.

Monitor power generation using SmartLife App for cellphone that provide current and historical energy output views, etc.

2024 model, better heat dissipation and waterproofing than older competitor models, e.g., WVC

Model	2800W
Input Data (DC, PV)
Number of Input MC4 Connector	4 sets. Each set must not exceed: 700W, 60V, 16A, whichever is LESS. Therefore, each MC cannot be 60V, 16A (= 960W) simultaneously.
MPPT Voltage Range	22V-48V
Operation Voltage Range	18V-60V
Maximum Input Voltage	60V, higher voltage like this 60V allows use of thinner wires
Startup Voltage	22V
Maximum Input Power	2800W
Maximum input Current	16A*4
Output Data(AC)
Single-Phase Grid Type	120V
Rated Output Power	2800W
Maximum Output Power	2800W
Nominal Output Current	@120VAC:16.6A Nominal
Nominal Output Voltage	120VAC
Default Output Voltage Range	@120VAC:80V-160V. Good for USA household 120Vac sockets
Nominal Output Frequency	50Hz / 60Hz
Default Output Frequency Range	@50Hz:48Hz-51Hz/@60Hz:58Hz-61Hz
Power Factor	>0.99%
THDTotal Harmonic Distortion	THD<5%
Maximum Units per Branch	@120VAC:1units/@230VAC:2units
Efficiency
Peak Efficiency	95%
Nominal MPPT Efficiency	99.5%
Night Power Consumption	<1W
Mechanical Data
Operating Ambient Temperature Range	-40℃ to +65℃
Storage Temperature Range	-40°C to +85C
Dimensions(WH D)	255mmx340mm x 45mm
Weight	3.65kg
Max Current of AC Bus Cable	20A
Waterproof Grade	IP66, suitable for outdoors (moisture/dust proof)
Cooling Mode	Natural Convection- No Fans noise/to fail, no dust ingrress.
Other Features
Communication	WIFI(Cloud monitoring). Views of current and historical power generated.
Transformer Design	High Frequency Transformers,Galvanically Isolated
Integrated Ground	Equipment ground is provided by the PE in the AC cable. No additional ground is required.
Protection Functions	lsolated Island Protection,Voltage Protection, Frequency Protection, Temperature Protection,Current Protection, etc.

Package Includes:

2800W Grid-tie Inverter with 4 sets of MC4 Connectors
120Vac inverter to grid/wall socket electrical/power cable
Installation hardware
Antenna for wifi for monitoring current and historical power generated. Download SmartLife for Android or iOS phones
User Manual

Do not connect energized solar panels to any inverter because the sudden surge of current into inverter will damage your panels and inverter. Either do such connections before sunrise or after sunset. Alternatively, use our SparkFree device kill switch will enable anytime connections, sparks free, and safe for solar panels and inverter in daylight connections.

For solar array with other voltage input and wattages, please take a look at our 60Vdc-1000W, 60Vc-3000W, and 500Vc-6000W
