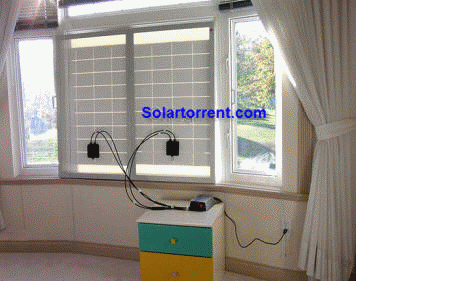

Solar to Power Grid. 1,000 watts AC on-grid inverter with built-in MPPT function and Pure Sine Wave output . Push solar energy directly into the utility grid and reverse the electricity meter! 12V or 24V battery can be inverter's power source. Island Effects Protection, auto-fan. Plug-n-Play, no hard wired to grid needed.

Input: Solar DC 10.5 to 28V (connect panels in parallel only to avoid exceeding volts limit, e.g., use panel rated 17V). For panels in series, use a Converter to bring volts down first.
Output: AC 220V, 50Hz, auto-synchronize with grid's power.
Safety: CE Certified. Conform to EN61000-3-2 and DIN VDE 126 standards.
Size: 12 x 6.5 x 2 ins, Weight: 4.7 lbs.
Nighttime Power Usage < 1W.

More Specifications
